Master The Transactional Outbox Pattern: Martin Fowler’s Guide To Reliable Microservices
The Transactional Outbox Pattern is a critical architectural design pattern for any distributed system. In modern microservices, ensuring data consistency between a database and a message broker is a classic challenge. Martin Fowler, a renowned expert in software development, has highlighted this pattern as the standard solution for the "Dual Write" problem. When an application needs to update a database and emit an event to a message broker (such as Kafka or RabbitMQ), doing so atomically without distributed transactions is notoriously difficult.
This pattern solves that dilemma by decoupling the database update from the message emission, ensuring that even if one component fails, the system eventually reaches a consistent state. By treating the outbox as part of the primary database transaction, developers can ensure that events are always delivered, upholding the principles of eventual consistency in distributed environments.
The Core Concept: Solving the Dual Write Problem
The fundamental issue in microservices is that databases and message brokers do not share a transaction coordinator. If your service updates the user database and then attempts to send an event to a broker, a network failure or a process crash between these two operations can result in a "ghost" state. The database might commit, but the message might never be sent, or vice versa, leading to system-wide desynchronization that is difficult to debug and repair.
Martin Fowler’s approach emphasizes that the "outbox" acts as a staging area within the same local transaction as the business logic. Instead of sending the message directly to the broker, the application writes the intended message into an "Outbox" table inside the same database. Because this write happens within the same database transaction as the business entity update, the operation becomes atomic. If the business transaction succeeds, the message is guaranteed to be in the database.
Once the message is safely stored in the Outbox table, a separate process—often referred to as a Message Relay—reads the table and publishes the messages to the broker. This separation of concerns ensures that the business service remains fast and responsive while the message delivery responsibility is handled by a background worker or a CDC (Change Data Capture) mechanism.
Implementing the Transactional Outbox Pattern
To implement this pattern effectively, developers must move beyond simple logic and consider the infrastructure level. The first step involves creating an Outbox table in your schema. This table should contain the payload of the event, the destination topic (or exchange), the status of the message, and a timestamp.
The application code then requires a slight refactor. Whenever a business transaction occurs—for example, creating a new user order—you must wrap the entity creation and the outbox insertion within a single unit of work. By ensuring that the connection or the transaction object is shared between the user table insert and the outbox table insert, you eliminate the possibility of a partial success.
The second phase of the implementation is the Message Relay. This is where the reliability of the system is tested. You can choose between two primary methods:
- Polling Publisher: A background thread polls the outbox table at short intervals, reads pending rows, publishes them to the broker, and marks them as processed.
- Transaction Log Tailing (CDC): Using tools like Debezium, you can watch the database transaction log (such as MySQL binlog or Postgres WAL). This is generally more performant and avoids the overhead of additional database queries.

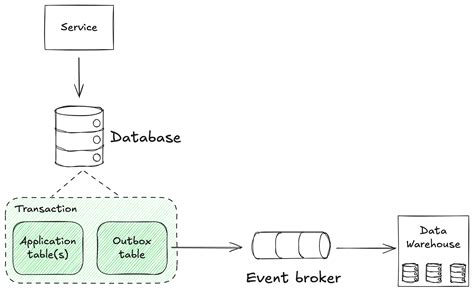

The outbox pattern for publishing events · Andrew Jones
Comparison: Transactional Outbox vs. Other Integration Patterns
When deciding on an architecture, developers often weigh the benefits of the Transactional Outbox against other common methods like 2PC (Two-Phase Commit) or simple synchronous REST calls.
| Feature | Transactional Outbox | Two-Phase Commit (2PC) | Synchronous REST |
|---|---|---|---|
| Consistency | Eventual | Strong | Strong |
| Availability | High | Low | Low |
| Complexity | Moderate | High | Low |
| Failure Mode | Resilient | Blocking | Fragile |
As shown in the table, the Transactional Outbox pattern prioritizes availability and reliability. 2PC is often impractical in modern cloud environments because it requires all participating systems to be available simultaneously, creating a single point of failure that can cascade across your architecture. Synchronous calls are even more brittle; if the recipient service is down or experiencing high latency, the initiator service will also fail, leading to poor user experience.
Pros and Cons of the Pattern
Pros
- Atomicity: The pattern guarantees that the state of your application and the message delivery are synchronized without needing expensive distributed transactions.
- Decoupling: Your services don't need to know the status of the message broker at the moment the business logic executes.
- Scalability: Because the message relay can run as an independent process, you can scale it separately from your primary API services.
Cons
- Complexity: It introduces additional infrastructure, such as the Outbox table and the Message Relay worker.
- Message Duplication: Since the process involves "at-least-once" delivery, your downstream consumers must be idempotent. They need to handle the possibility of receiving the same event twice.
- Latency: There is a slight delay between the database transaction and the actual message delivery, which may not be suitable for real-time systems requiring sub-millisecond event propagation.
Frequently Asked Questions
Is the Transactional Outbox pattern only for microservices?
While primarily used in microservices to sync databases with message queues, it is also useful in monolithic systems that need to integrate with external systems reliably, preventing data loss during communication failures.
What is the biggest challenge when using this pattern?
The biggest challenge is ensuring idempotency in the consumer services. Since network failures can occur after an event is published but before it is acknowledged as "processed" in the outbox, duplications are inevitable. Your consumers must be designed to handle duplicate messages gracefully.
Can I use CDC instead of polling?
Yes, Change Data Capture (CDC) is widely considered the superior approach. It avoids overloading your database with polling queries and provides near-instantaneous event generation by reading the database log directly.
Does Martin Fowler recommend this for every integration?
Martin Fowler suggests this pattern specifically when you need to avoid the pitfalls of distributed transactions. It is a tactical choice for complex, decoupled systems where reliability is a business priority.
What happens if the Message Relay crashes?
Because the messages are persisted in the Outbox table, they remain there until the relay recovers. Once the relay is back online, it resumes from where it left off, ensuring no data loss occurs.
Start Building Resilient Systems Today
Adopting the Transactional Outbox pattern is a hallmark of mature software engineering. It acknowledges the realities of distributed systems—where network partitions and process crashes are inevitable—and provides a structured path to reliability. By moving away from brittle, synchronous integrations, you build services that are easier to maintain, scale, and debug.
